Thursday, October 10, 2019

2004 VB131 and 2004 VV131 - Interesting TNOs

2004 VB131 and 2004 VV131

As described in this paper by C. de la Fuente Marcos and R. de la Fuente Marcos, TNO 2004 VB131 and 2003 UT291 are probably dynamically correlated.

I wonder whether TNO 2004 VV131 can be regarded as a third member of a cluster or it just happens to share similar orbital parameters with 2004 VB131 by chance.

The following simulation has been done using Mercury Integrator (package version 6) by John E. Chambers.
reference:
``A Hybrid
      Symplectic Integrator that Permits Close Encounters between
      Massive Bodies''. Monthly Notices of the Royal Astronomical
      Society, vol 304, pp793-799.







The graphs have been done using scripts written in language R, library ggplot2.

Nominal orbits from JPL

Ephemeris | Orbit Diagram | Orbital Elements | Physical Parameters ]

[ show orbit diagram ]
Orbital Elements at Epoch 2458600.5 (2019-Apr-27.0) TDB
Reference: JPL 6 (heliocentric ecliptic J2000)
 Element Value Uncertainty (1-sigma)   Units
e .06700099861890772 0.00084146
a 42.59056500132775 0.05372 au
q 39.73695461449529 0.08529 au
i 1.609969815239925 0.0010253 deg
node 51.13004651765624 0.0029309 deg
peri 205.5909322273696 0.62841 deg
M 166.9050842729729 0.70297 deg
tp 2411531.432483070632
(1890-Jun-12.93248307)
140.66 TDB
period 101523.9552462122
277.96
192.08
0.5259
d
yr
n .003545961139190658 6.7089e-06 deg/d
Q 45.4441753881602 0.057319 au
  Orbit Determination Parameters
   # obs. used (total)      15
   data-arc span      3638 days (9.96 yr)
   first obs. used      2003-10-22
   last obs. used      2013-10-07
   planetary ephem.      DE431
   SB-pert. ephem.      SB431-N16
   condition code      5
   norm. resid. RMS      .13516
   source      ORB
   producer      Otto Matic
   solution date      2017-Sep-03 18:51:51

Additional Information
 Earth MOID = 38.7218 au
 Jupiter MOID = 34.4139 au
 T_jup = 5.829
(2003 UT291)
Classification: TransNeptunian Object          SPK-ID: 3170250



Ephemeris | Orbit Diagram | Orbital Elements | Physical Parameters ]

[ show orbit diagram ]
Orbital Elements at Epoch 2458600.5 (2019-Apr-27.0) TDB
Reference: JPL 7 (heliocentric ecliptic J2000)
 Element Value Uncertainty (1-sigma)   Units
e .07651698572696135 0.0001976
a 43.99692586931386 0.023306 au
q 40.63041372054139 0.027328 au
i 1.747331850985222 0.00056088 deg
node 50.3788794397727 0.0033254 deg
peri 206.9134956534745 0.43421 deg
M 153.3613703123759 0.49693 deg
tp 2413191.137426218222
(1894-Dec-28.63742622)
114.82 TDB
period 106593.7953818755
291.84
84.699
0.2319
d
yr
n .003377307269248543 2.6836e-06 deg/d
Q 47.36343801808632 0.02509 au
  Orbit Determination Parameters
   # obs. used (total)      22
   data-arc span      3662 days (10.03 yr)
   first obs. used      2004-11-09
   last obs. used      2014-11-19
   planetary ephem.      DE431
   SB-pert. ephem.      SB431-N16
   condition code      5
   norm. resid. RMS      .41094
   source      ORB
   producer      Otto Matic
   solution date      2017-Apr-08 20:54:11

Additional Information
 Earth MOID = 39.6152 au
 Jupiter MOID = 35.3111 au
 T_jup = 5.914
(2004 VB131)
Classification: TransNeptunian Object          SPK-ID: 3564172


Ephemeris | Orbit Diagram | Orbital Elements | Physical Parameters ]

[ show orbit diagram ]
Orbital Elements at Epoch 2458600.5 (2019-Apr-27.0) TDB
Reference: JPL 1 (heliocentric ecliptic J2000)
 Element Value Uncertainty (1-sigma)   Units
e .07647397777967113 0.00011666
a 44.01275464882558 0.0049995 au
q 40.64692422778918 0.0088412 au
i 1.746638527260639 0.00023322 deg
node 50.3833826820534 0.00077942 deg
peri 207.2072988521391 0.097721 deg
M 153.0207686419978 0.11517 deg
tp 2413267.534322143576
(1895-Mar-15.03432214)
32.533 TDB
period 106651.3244500145
292.00
18.172
0.04975
d
yr
n .003375485507155847 5.7515e-07 deg/d
Q 47.37858506986198 0.0053819 au
  Orbit Determination Parameters
   # obs. used (total)      43
   data-arc span      4461 days (12.21 yr)
   first obs. used      2004-11-09
   last obs. used      2017-01-26
   planetary ephem.      DE431
   SB-pert. ephem.      SB431-N16
   condition code      4
   norm. resid. RMS      .19842
   source      ORB
   producer      Otto Matic
   solution date      2018-Nov-11 16:42:15

Additional Information
 Earth MOID = 39.6317 au
 Jupiter MOID = 35.3288 au
 T_jup = 5.915
(2004 VV131)
Classification: TransNeptunian Object          SPK-ID: 3836183
Clone generations
I generated 100 clones trying to achieve the same orbital distribution as shown above (average and uncertainty) under the ideal assumption that we can deal with normal distributions.

2004 VB131

Clones  Target
mean sd   mean sd
q 40.6321499 0.02750148   40.63041372 0.027328
e 0.07649604 0.00019764   0.07651699 0.0001976
i 1.74731535 0.00056535   1.74733185 0.00056088
peri 206.91266172 0.43573354   206.91349565 0.43421
node 50.37912644 0.00333604   50.37887944 0.0033254
tp 2413189.25460454 115.05970535   2413191.13742622 114.82

2004 VV131

Clones  Target
mean sd   mean sd
q 40.64866623 0.0090227   40.64692423 0.0088412
e 0.07646112 0.00011592   0.07647398 0.00011666
i 1.74668055 0.00023669   1.74663853 0.00023322
peri 207.22233167 0.09641847   207.20729885 0.097721
node 50.38334862 0.00078214   50.38338268 0.00077942
tp 2413270.69430322 31.7570317   2413267.53432214 32.533


Simulation set-up
N-Body algorithm: Bulirsch-Stoer
integration in the last 500 years
output every 100 days

Simulation results
The resulting 100*100 pairs of clones were analyzed looking for the time when they reached the minimum distance (taking note of relative velocity as well).

The best clone couple behaved as shown below

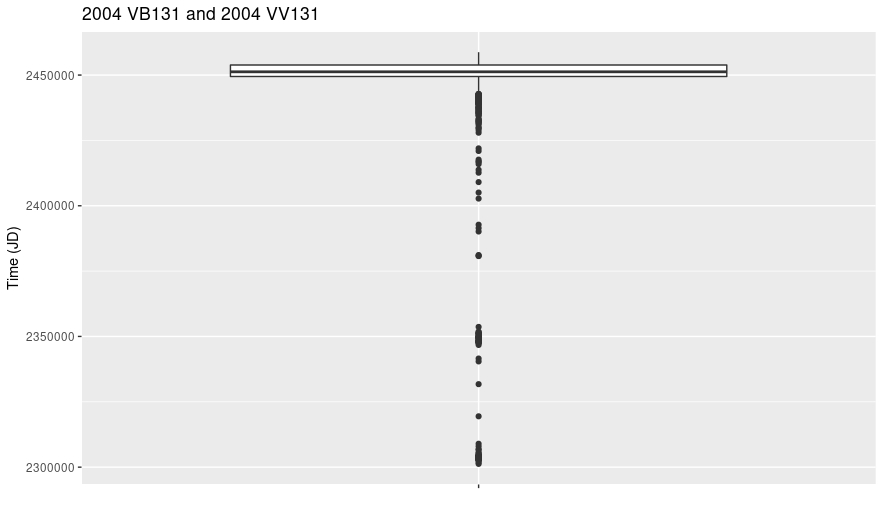

The whole distribution of mininum distances, relative velocities and time was as shown below:




Kind Regards,
Alessandro Odasso

Sunday, August 20, 2017

Hilda Asteroid 2017 OJ65 - an old TNO?

This object is currently an Hilda asteroid.

I run a simulation using the nominal orbital parameters read from JPL (Horizons Web Interface).

Uncertainty condition code: 0

Mercury6 simulator: configuration
More about the orbit simulator "A Hybrid Symplectic Integrator that Permits Close Encounters between Massive Bodies'' can be found here.

Main integration parameters:

   Algorithm: Bulirsch-Stoer (conservative systems)

   Integration start epoch:         2458000.5000000 days
   Integration stop  epoch:        -10^8 days
   Output interval:                     100.000 days
   Output precision:                   medium
   Initial timestep:                      0.100 days
   Accuracy parameter:             1.0000E-12
   Ejection distance:                  1.0000E+02 AU

Simulation results

This plot has been made using the R-package.



This seems to show that this asteroid was previously a TNO.

Kind Regards,
Alessandro Odasso
